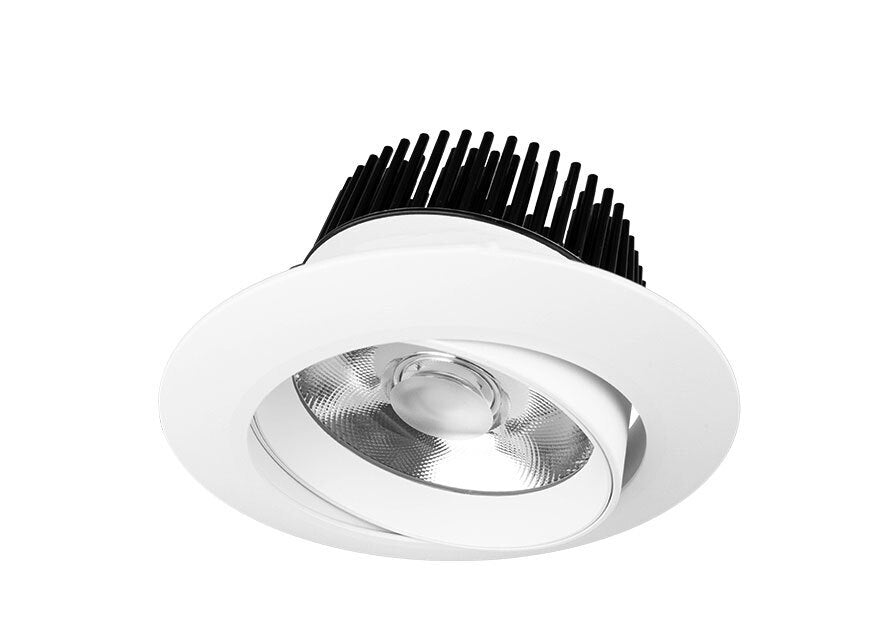

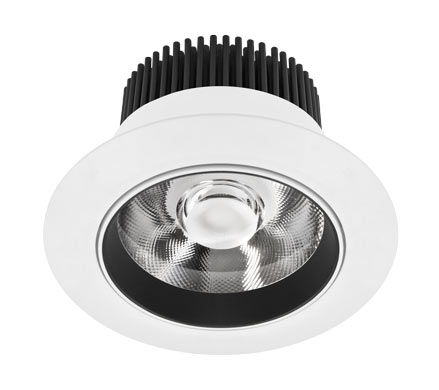

Trend MINILED XDMS25 25W LED Downlight

SKU: XDMS253-WB-W
Regular price $219.00
Unit price
per

Trend MINILED XDMS25 25W LED Downlight

SKU: XDMS253-WB-W
Regular price $219.00
Unit price
per
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.
  • Recessed adjustable LED downlight with front collimator lens and lower profile, characterised by its quality, light efficiency and performance
  • Manufactured with an aluminium body and powder coat finish
  • Large pin fin heatsink for optimal thermal management
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver

Physical Characteristics

Trim Colour:White

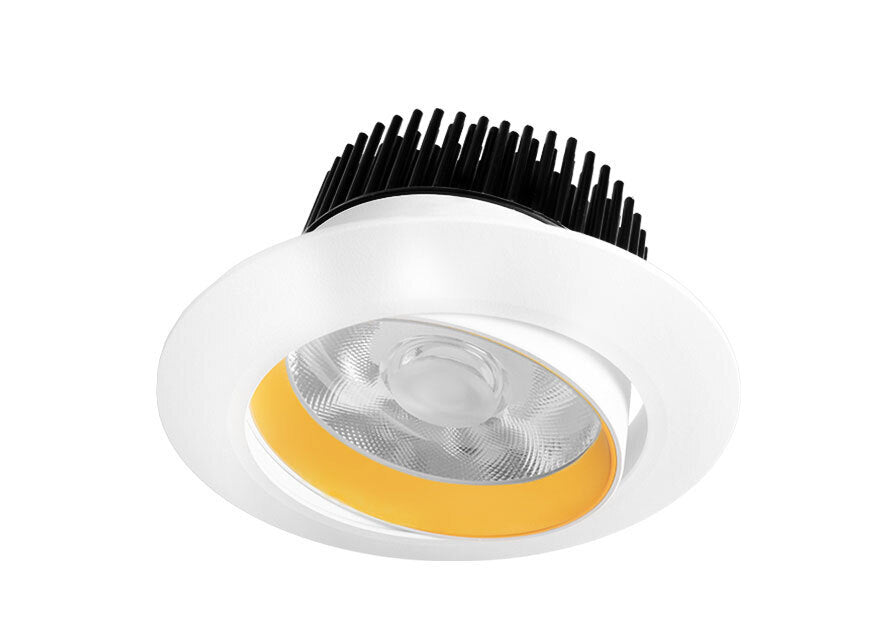

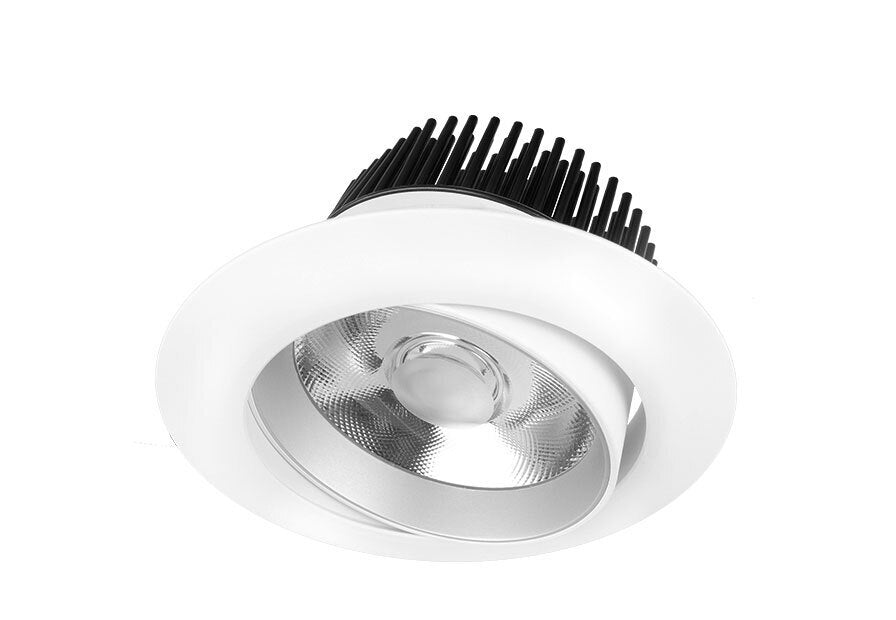

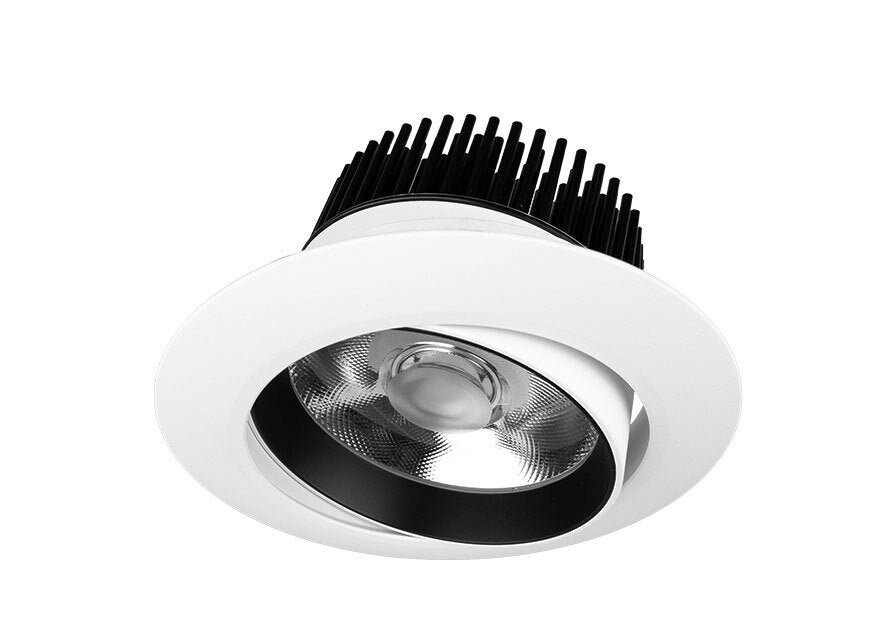

Insert Colour:White|Black|Silver|Gold
Dimensions:⌀150 X 85 (H) mm
Weight:505 g
Tilt Angle:25°
Cutout:Circle - 120 mm
Spring Height:35 mm

General Characteristics

Family:Midiled
Surface:Ceiling
Mounting:Recessed
Insulation Contact:Non-IC
Ingress Protection:IP20

Technical Characteristics*

LED Power:25W
LED Type:COB
LED Lumen Output*:2955 lm
Luminous Flux*:2228 lm
Efficacy*:84.39 lm/W
Colour Temperature:2700K|3000K|3500K|4000K
Colour Technology:CRI 90+ Standard|CRI 93+ VIVID|CRI 97+ Standard
Colour Deviation:SDCM ≤ 2
Lifetime:50,000 hours (L80)
Beam Angle:Wide|Medium
System Power:26.4W Typical
Driver Model:Trend 150020-700 (L&T)
Input:180-265V AC 50/60 Hz
Output:30-40V DC 700mA
Power Factor:>0.90
Protection:OVP,OTP,OCP,SCP,OPP
Driver:Leading & Trailing Edge|DALI
