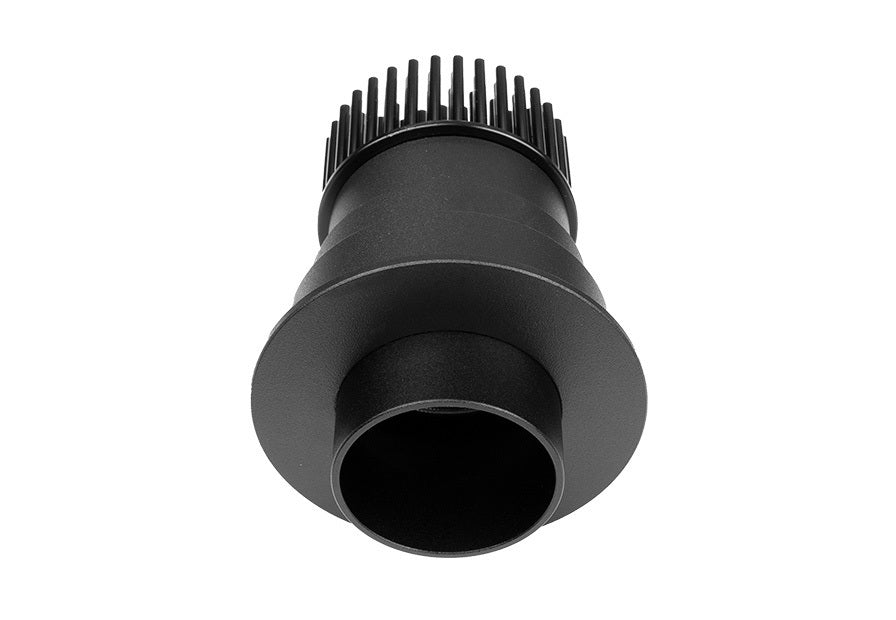

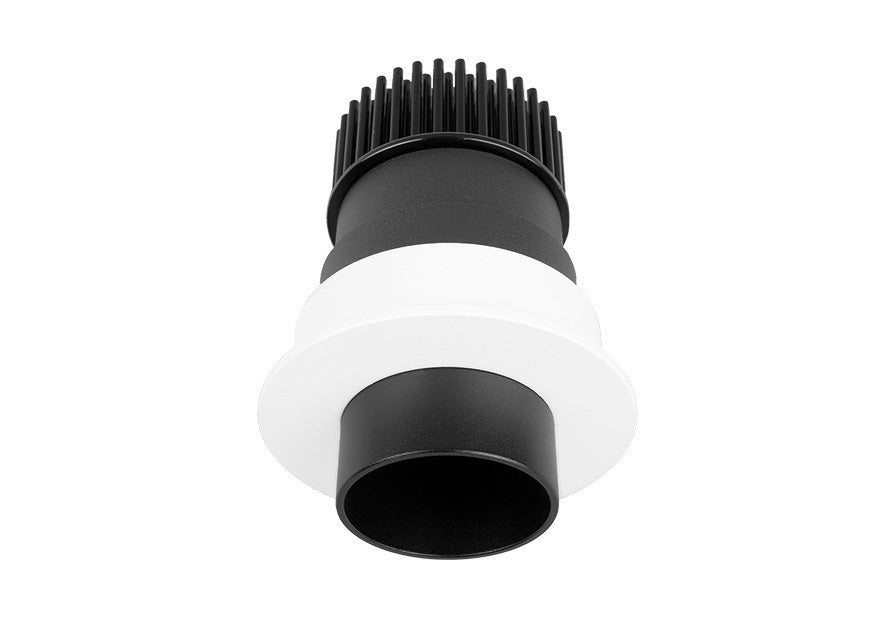

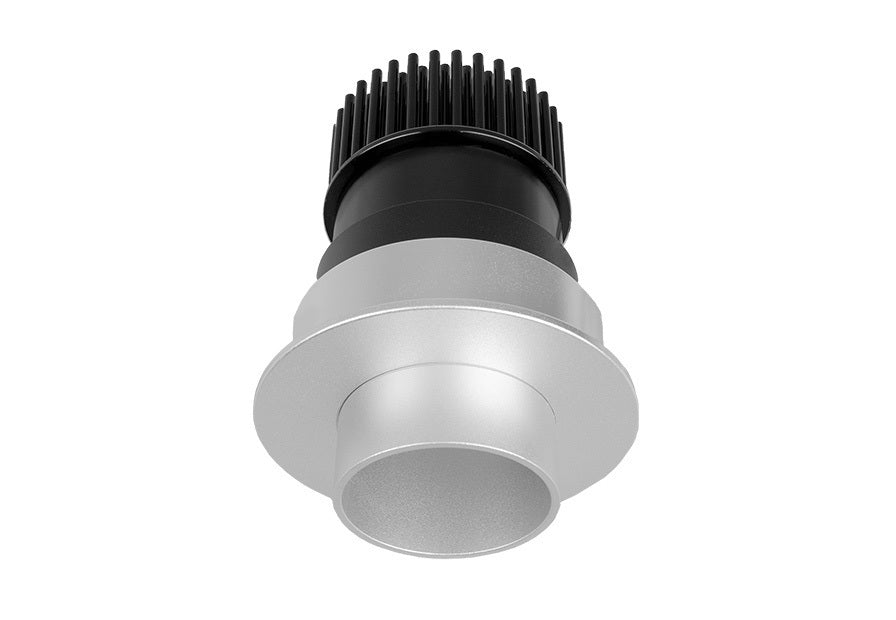

Trend MINILED XDQ10 10W LED Downlight

• Recessed low glare LED downlight with pinhole aperture, ideal for accent lighting and highlighting points of interest
• Featured with removable black baffle insert that allows for tighter beam spread coverage
• Ultimate choice for areas where controlled lighting is needed
• Manufactured with an aluminium body and powder coat finish

• Supplied with a remote driver

Physical Characteristics

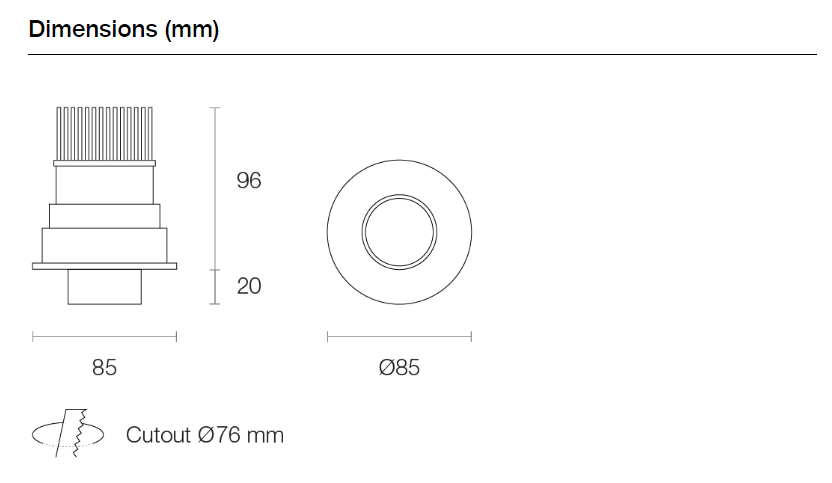

Dimensions
⌀85 X 116 (H) mm
Weight
280 g
Cutout
Circle - 76 mm
Spring Height
16 mm

General Characteristics
Family
Miniled
Surface
Ceiling
Mounting
Recessed
Insulation Contact
CA90
Ingress Protection
IP20

Technical Characteristics*
LED Power
10W
LED Type
COB
LED Lumen Output*
1450 lm
Luminous Flux*
553 lm
Efficacy*
47.26 lm/W
Colour Deviation
SDCM ≤ 3
Lifetime
50,000 hours (L80)
Beam Angle
Narrow
System Power
11.7W Typical
Driver Model
Trend 150218-300 (L&T)
Input
180-265V AC 50/60 Hz
Output
30-42V DC 300mA
Power Factor
>0.93
Protection
OVP,OTP,OCP,SCP,OPP
Driver
Leading & Trailing Edge
