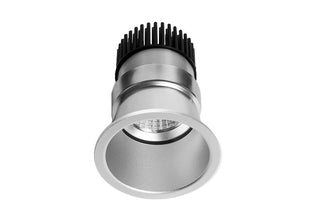

Trend MINILED XDR10 10W Recessed LED Downlight

• Deep recessed LED downlight with IP65 rating, known for its thin trim profile and low glare design
• Manufactured with an aluminium body and powder coat finish
• CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
• Supplied with a remote driver

Physical Characteristics

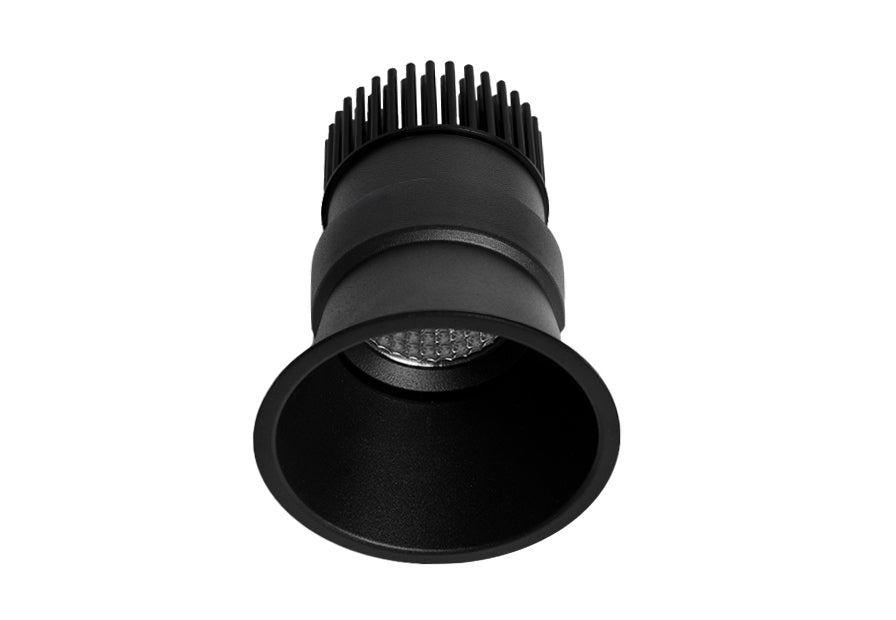

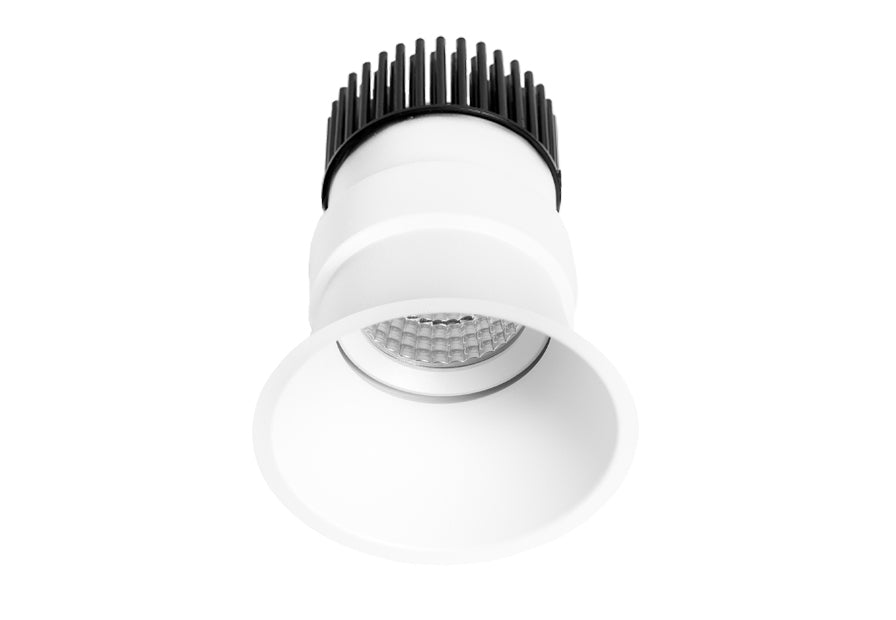

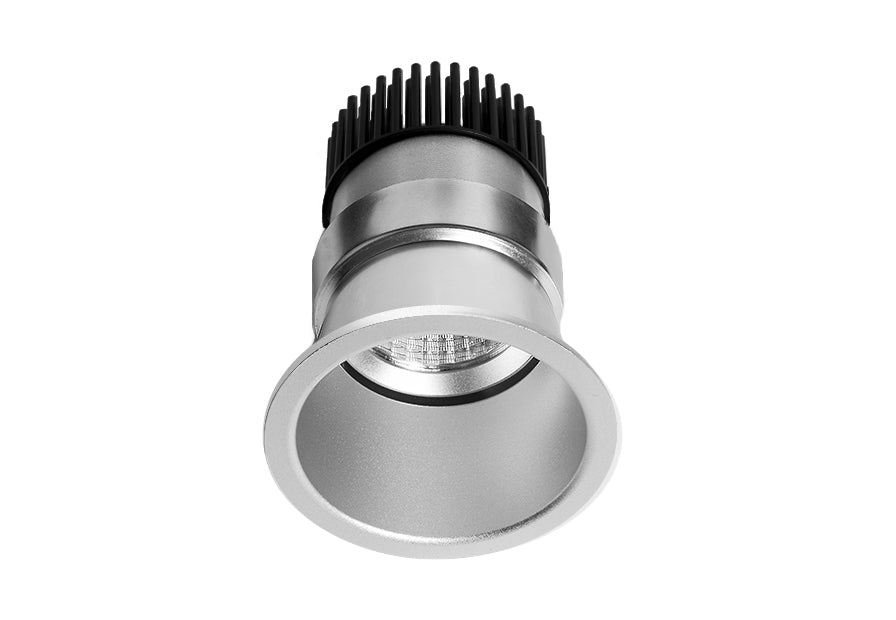

Trim Colour：White|Black|Silver
Dimensions：⌀92 X 120 (H) mm
Weight：230 g
Cutout：Circle - 78 mm
Spring Height：50 mm

General Characteristics

Family：Miniled
Surface：Ceiling
Mounting：Recessed
Insulation Contact：CA90
Ingress Protection：IP65

Technical Characteristics*

LED Power：10W
LED Type：COB
LED Lumen Output*：1450 lm
Luminous Flux*：1019 lm
Efficacy*：87.09 lm/W
Colour Temperature：2700K|3000K|3500K|4000K
Colour Technology：CRI 90+ Standard | CRI 93+ VIVID | CRI 97+ Standard
Colour Deviation：SDCM ≤ 3
Lifetime：50,000 hours (L80)
Beam Angle：Narrow|Medium
System Power：11.7W Typical
Driver Model：Trend 150218-300 (L&T)
Input：180-265V AC 50/60 Hz
Output：30-42V DC 300mA
Power Factor：>0.93
Protection：OVP,OTP,OCP,SCP,OPP
Driver:Leading & Trailing Edge|DALI|1-10V
