Trend MINILED XDS10 10W LED Downlight

SKU: XDS103-WB-W
Regular price $107.00
Unit price
per

Trend MINILED XDS10 10W LED Downlight

SKU: XDS103-WB-W
Regular price $107.00
Unit price
per
Fast Shipping from $7.90
Secure payments
(0 in cart)
Tax included.Shipping calculated at checkout.
  • Recessed LED downlight characterised by its quality, light efficiency and performance
  • Manufactured with an aluminium body and powder coat finish
  • Large pin fin heatsink for optimal thermal management
  • Also available in other configurations (XDS15, XDS25 and XDS35)
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver

Physical Characteristics

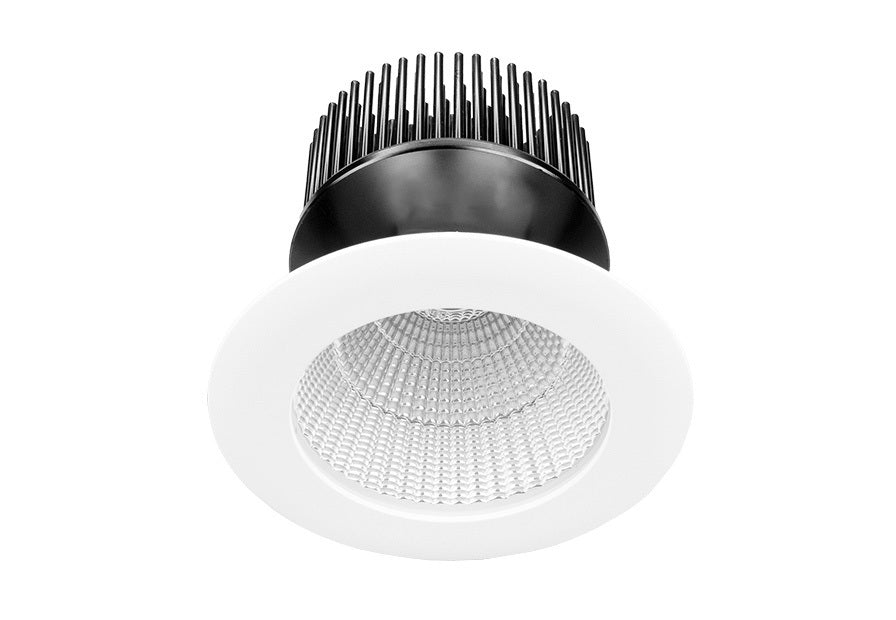

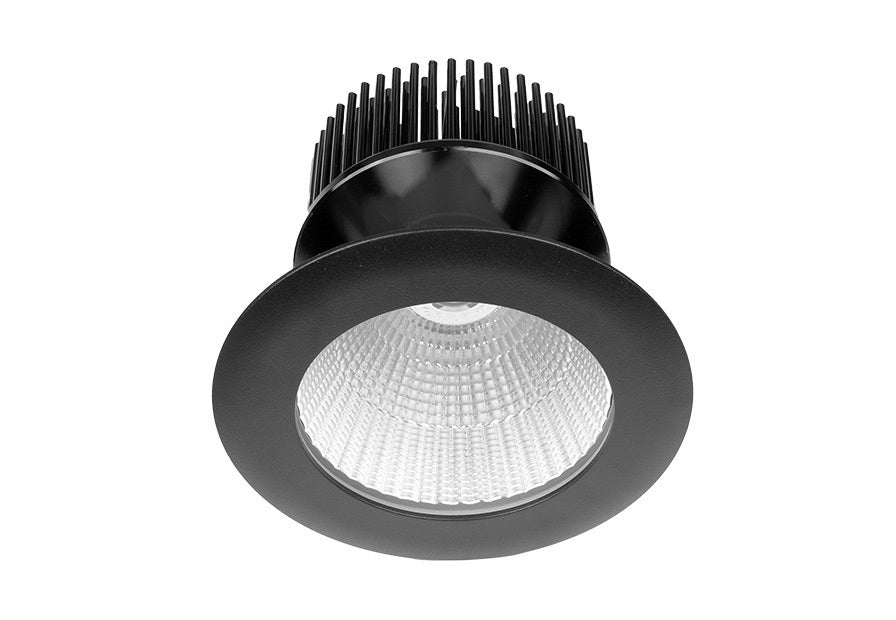

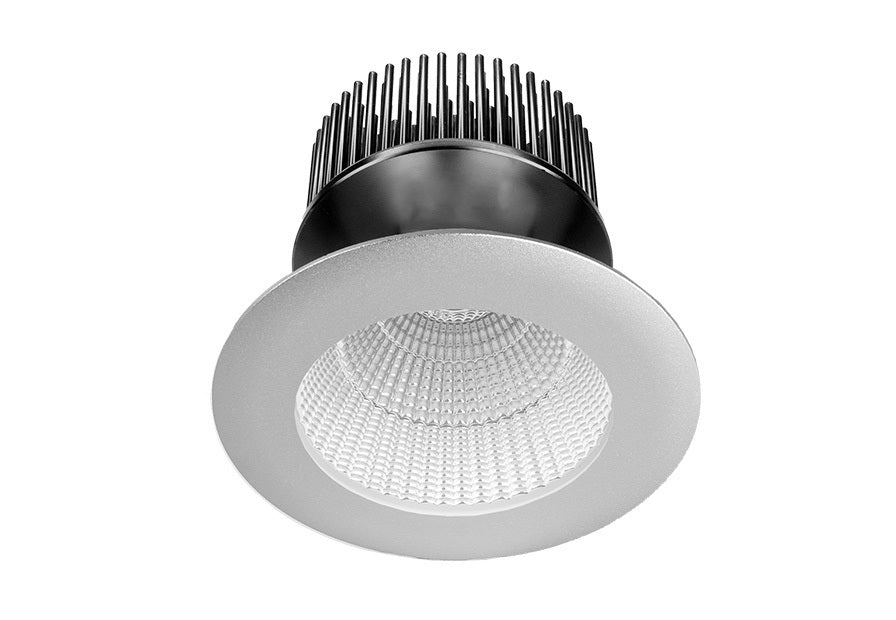

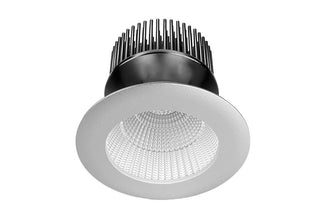

Trim Colour:White | Black | Silver

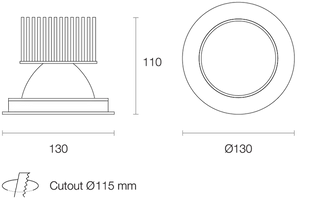

Dimensions:⌀130 X 110 (H) mm
Weight:370 g
Cutout:Circle - 115 mm
Spring Height:22 mm

General Characteristics

Family:Midiled
Surface:Ceiling
Mounting:Recessed
Insulation Contact:Non-IC
Ingress Protection:IP44

Technical Characteristics*

LED Power:10W
LED Type:COB
LED Lumen Output*:1450 lm
Luminous Flux*:1082 lm
Efficacy*:92.48 lm/W
Colour Temperature:2700K | 3000K | 3500K | 4000K
Colour Technology:CRI 90+ Standard | CRI 93+ VIVID | CRI 97+ Standard
Colour Deviation:SDCM ≤ 3
Lifetime:50,000 hours (L80)
Beam Angle:Wide | Narrow | Medium
System Power:11.7W Typical
Driver Model:Trend 150218-300 (L&T)
Input:180-265V AC 50/60 Hz
Output:30-42V DC 300mA
Power Factor:>0.93
Protection:OVP,OTP,OCP,SCP,OPP
Driver:Leading & Trailing Edge | DALI|1-10V
