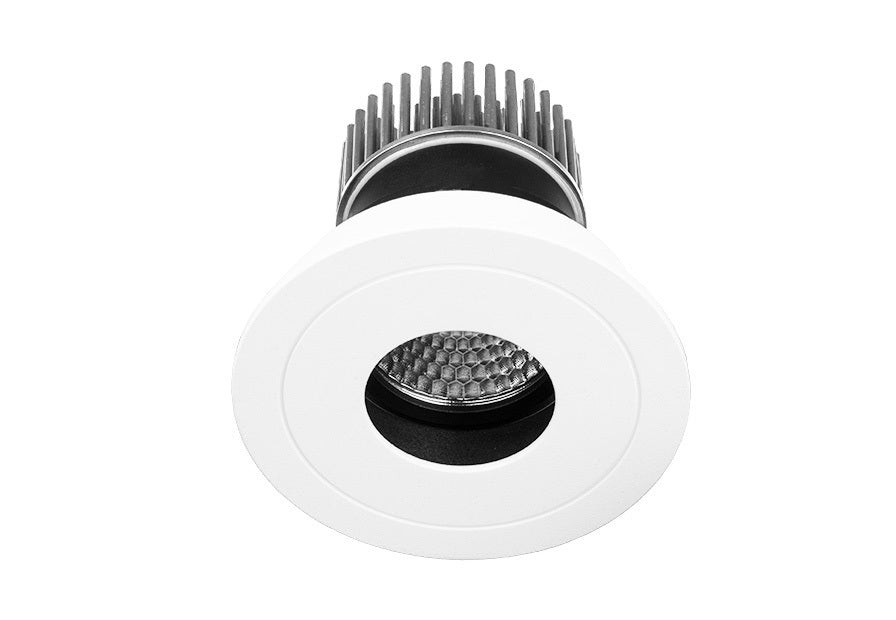

Trend PLATINUM P12H LED Downlight

• Recessed low glare LED downlight with pinhole aperture, ideal for accent lighting and highlighting points of interest
• Manufactured with an aluminium body and powder coat finish
• Injection moulded twice vacuum metalised reflector for high reflectivity and uniform beam distribution
• Can be specified with specular dark reflector
• CRI 94+ and CRI 98+ Optisolis available in 2700K, 3000K, 3500K and 4000K CCT options
• Supplied with a remote driver

Physical Characteristics

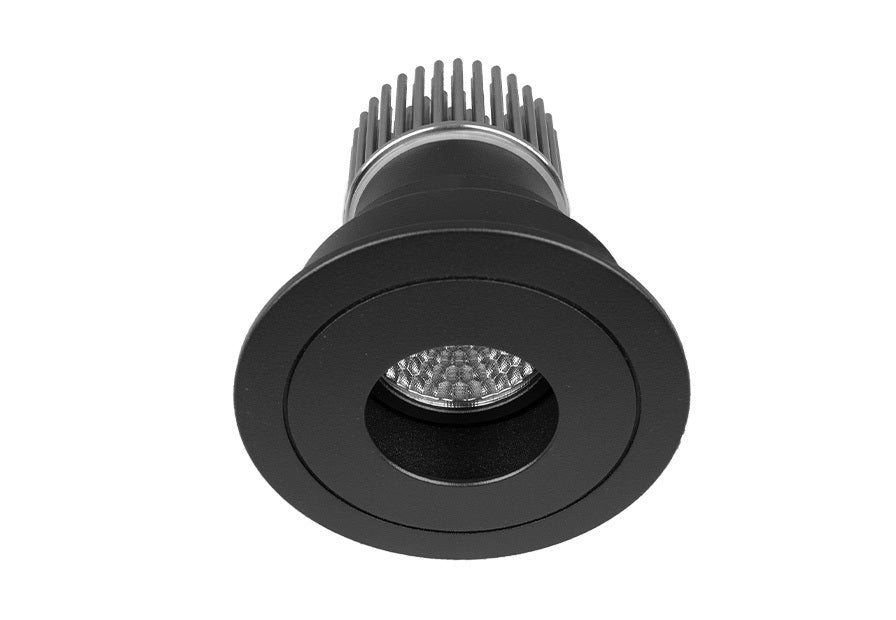

Trim Colour：White|Black
Dimensions：⌀107 X 90 (H) mm
Weight：345 g
Cutout：Circle - 92 mm
Spring Height：16 mm

General Characteristics

Family：Platinum
Surface：Ceiling
Mounting：Recessed
Insulation Contact：CA90
Ingress Protection：IP20

Technical Characteristics*

LED Power：10W
LED Type：COB
LED Lumen Output*：1350 lm
Luminous Flux*：889 lm
Efficacy*：74.71 lm/W
Colour Temperature：2700K|3000K|3500K|4000K
Colour Technology：CRI 94+ Standard|CRI 98+ Optisolis
Colour Deviation：SDCM ≤ 2
Lifetime：>60,000 hours (L80 B10)
Beam Angle：Narrow|Medium
System Power：11.9W Typical
Driver Model：Trend 150218-300 (L&T) Black
Input：180-265V AC 50/60 Hz
Output：30-42V DC 300mA
Power Factor：>0.93
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Leading & Trailing Edge|DALI
Accessories：Specular Dark Reflector
