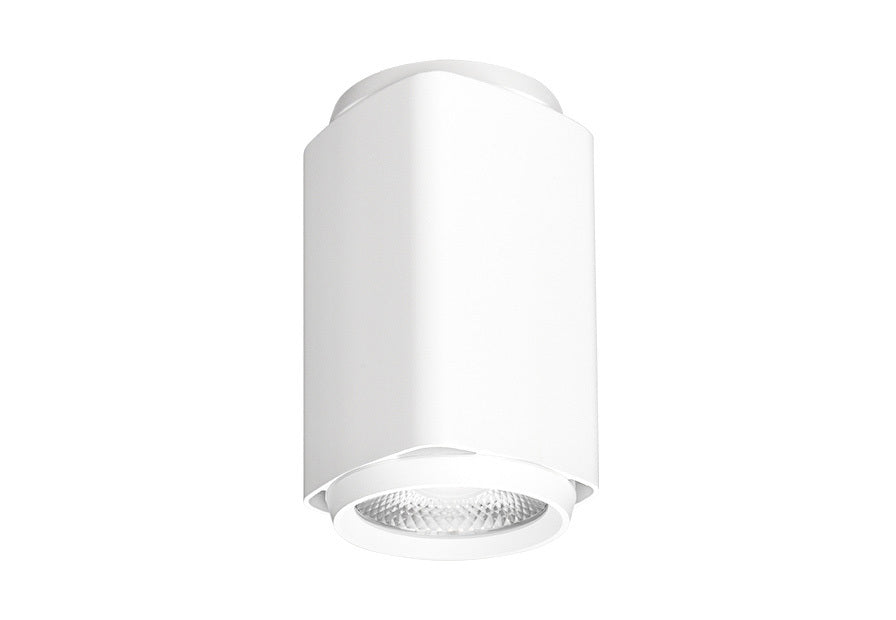

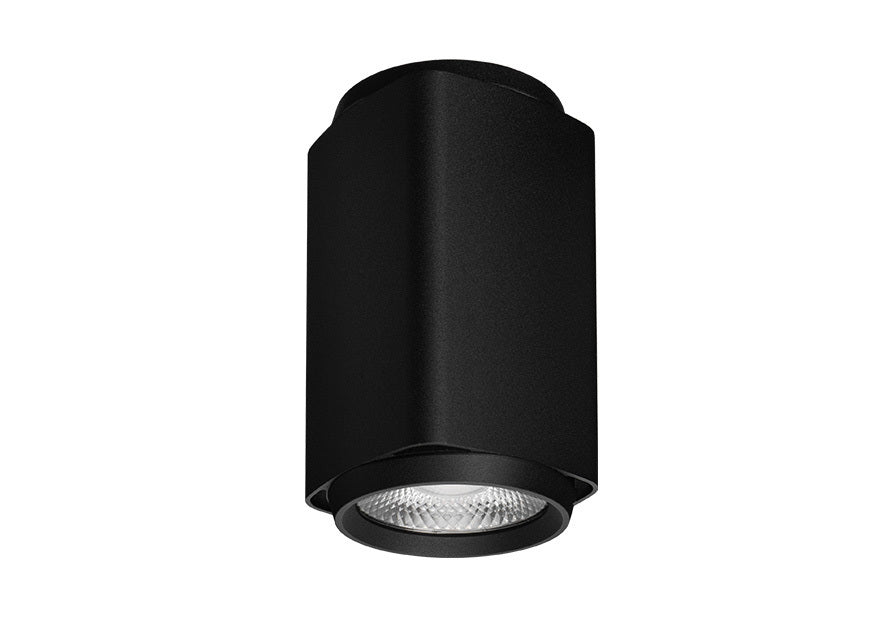

Trend Square Surface Mounted LED Downlight XSI25 25W

• Surface mounted square LED downlight with high efficiency collimator lens; available with optional honeycomb lens
• Die cast aluminium body with integrated heatsink design for optimal thermal management
• CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
• Supplied with an integral driver


Physical Characteristics

Trim Colour:Black|White
Dimensions:90 (L) X 90 (W) X 157 (H) mm
Weight:1300 g

General Characteristics

Family:Surface
Surface:Ceiling
Mounting;Surface Mounted
Ingress Protection:IP20

Technical Characteristics*

LED Power：25W
LED Type：COB
LED Lumen Output*：2955 lm
Luminous Flux*：2299 lm
Efficacy*：87.08 lm/W
Colour Temperature：2700K|3000K|3500K|4000K
Colour Technology：CRI 90+ Standard|CRI 93+ VIVID|CRI 97+ Standard
Colour Deviation：SDCM ≤ 2
Lifetime：50,000 hours (L80)
Beam Angle：Wide
System Power：26.4W Typical
Driver Model：Trend 150080-600 (Non-dim)
Input：220-240V AC 50/60 Hz
Output：25-42V DC 600mA
Power Factor：>0.90
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Non-dimmable|DALI
Accessories：Honeycomb Lens
