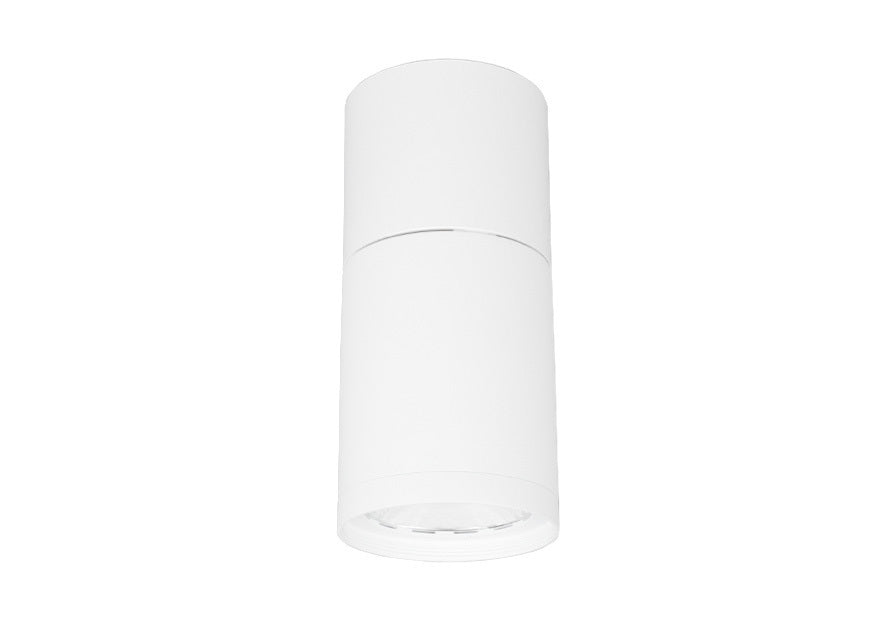

Trend Surface Mounted Compact LED Spotlight XSO20 20W

• Surface mounted compact LED downlight, manufactured with an aluminium body and powder coat finish
• Available with a comprehensive range of accessories, catering for a variety of lighting demands
• CRI 90+ available in 2700K, 3000K and 4000K CCT options
• Supplied with an integral driver

Physical Characteristics

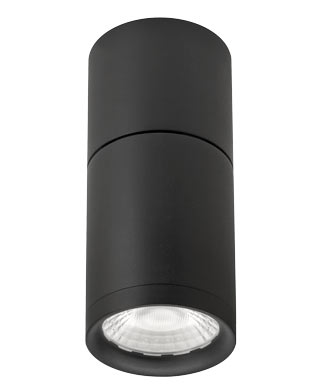

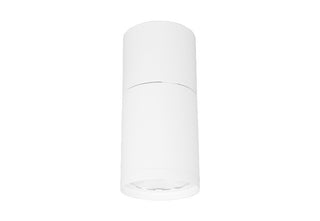

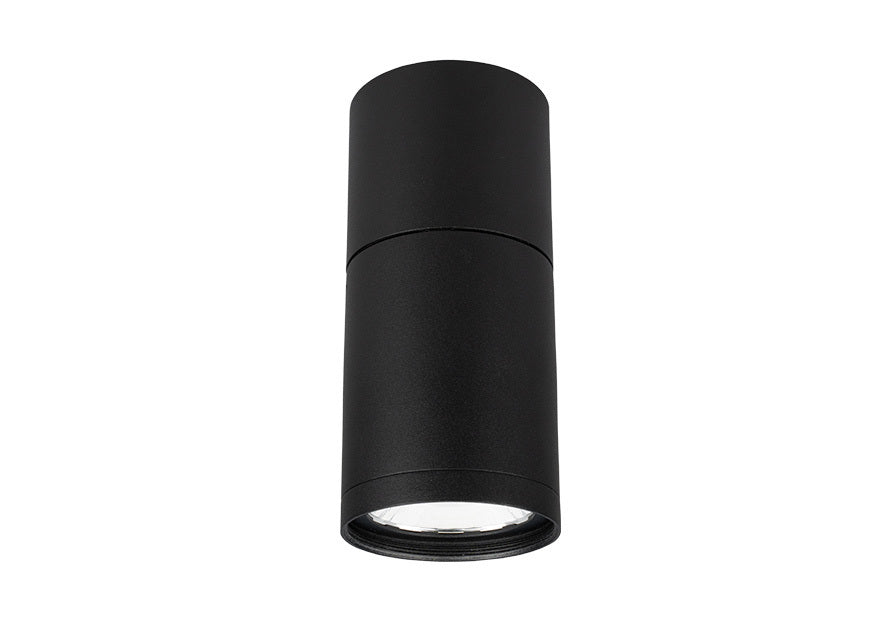

Trim Colour：Black|White
Dimensions：⌀83 X 183 (H) mm
Weight：867 g

General Characteristics

Family：urface
Surface：Ceiling
Mounting：Surface Mounted
Ingress Protection：IP20

Technical Characteristics*

LED Power：20W
LED Type：COB
LED Lumen Output*：3132 lm
Luminous Flux*：2527 lm
Efficacy*：108.92 lm/W
Colour Temperature：2700K|3000K|400K
Colour Technology：CRI 90+ Standard
Colour Deviation：SDCM ≤ 2
Lifetime：50,000 hours (L80)
Beam Angle：Medium|Narrow
System Power：23.2W Typical
Driver Model：Trend 150417-500 (Non-dim)
Input：220-240V AC 50/60 Hz
Output：25-42V DC 500mA
Power Factor：>0.90
Protection：OVP,OTP,OCP,SCP,OPP
Driver：Non-dimmable|DALI|1-10V
Accessories：Barn Door|Cross Louvre|Eye Snoot|Honeycomb Lens|Snoot|Wallwash Ring
