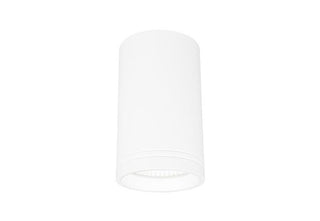

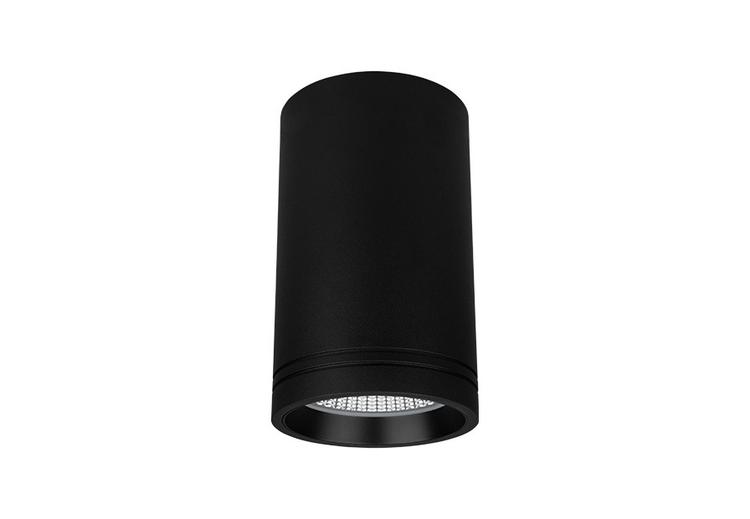

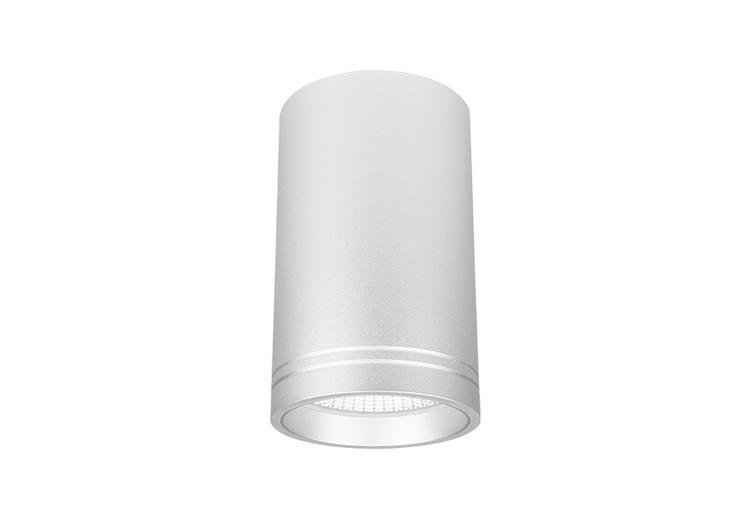

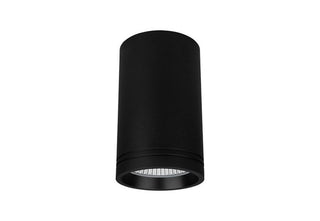

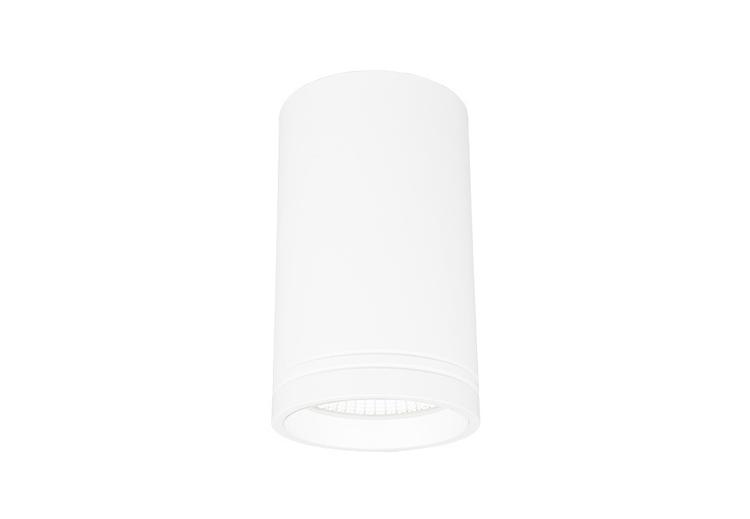

Trend Surface Mounted LED Downlight XSR25 25W

• Surface mounted LED downlight, manufactured with an aluminium body in powder coat finish and sealed face with silicone gasket
• Designed with no visible mounting screws providing a cleaner look with a large integral pin fin heatsink for excellent thermal management

Physical Characteristics
Trim Colour
Black|White|Silver

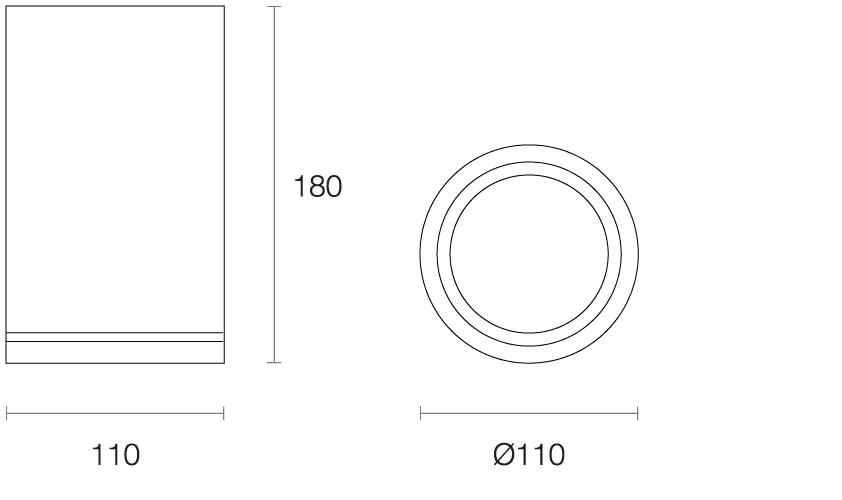

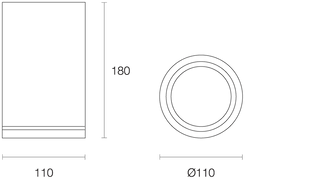

Dimensions
⌀110 X 180 (H) mm
Weight
1310 g

General Characteristics
Mounting
Surface Mounted
Ingress Protection
IP20

Technical Characteristics*
LED Power
25W
LED Type
COB
LED Lumen Output*
2955 lm
Luminous Flux*
2230 lm
Efficacy*
83.21 lm/W
Colour Temperature
3000K|4000K
Colour Deviation
SDCM ≤ 2
Lifetime
50,000 hours (L80)
Beam Angle
Wide|Narrow|Medium
System Power
26.8W Typical
Driver Model
Trend 150080-600 (T/E)
Input
220-240V AC 50/60 Hz
Output
25-42V DC 600mA
Power Factor
>0.90

Driver

Trailing Edge
