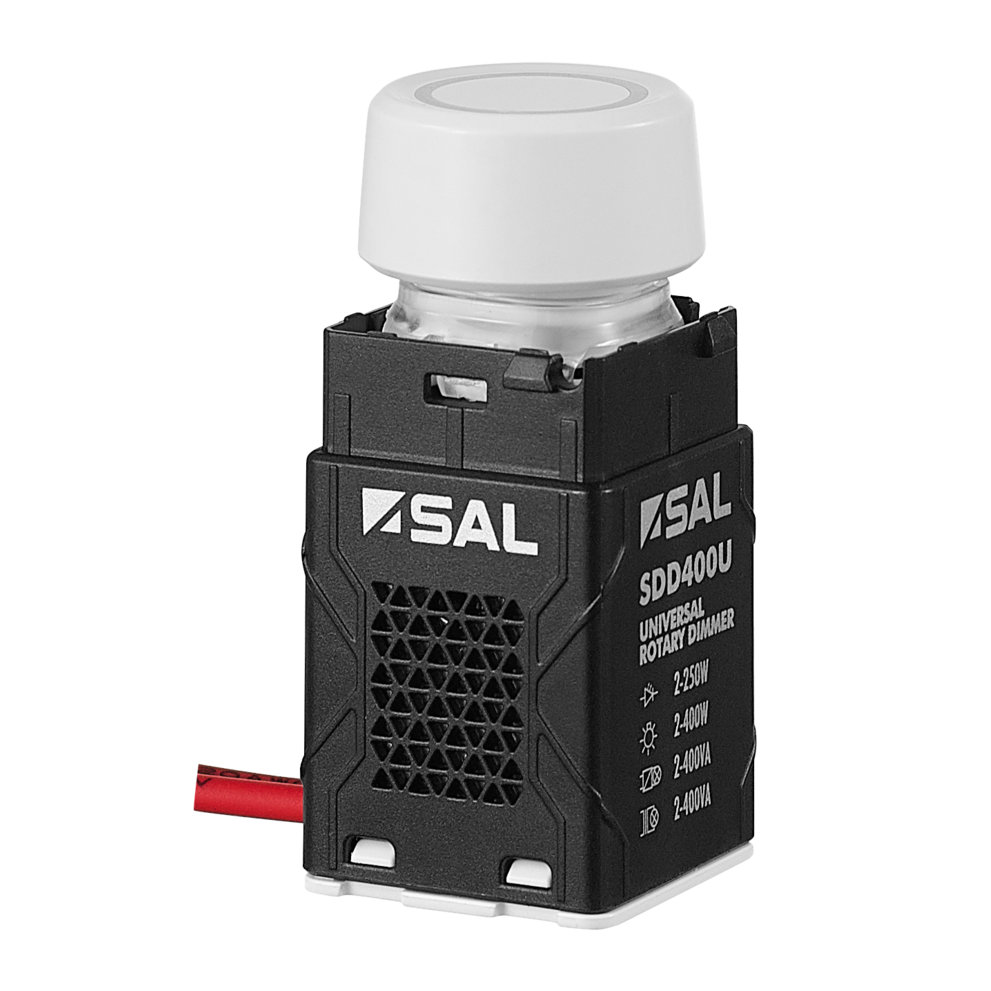

SAL Universal Rotary Dimmer SDD400U

Application

Residential and commercial lighting control requirements

Design Specifications

• Multi-function trailing edge or leading edge digital dimmer with soft start technology and no neutral termination required. Push ON or OFF control

• 240V, load rating 2 - 400W, load compatibility and multi-gang configuration de-rating values, refer to the installation sheet

• Fit most popular switch plates

• Designed with over-heating protection, compliant with AS/NZS 60669 2.1

• Colour temperature selection functionality is achieved when used with SAL S9841 or S9842 downlights

Performance
