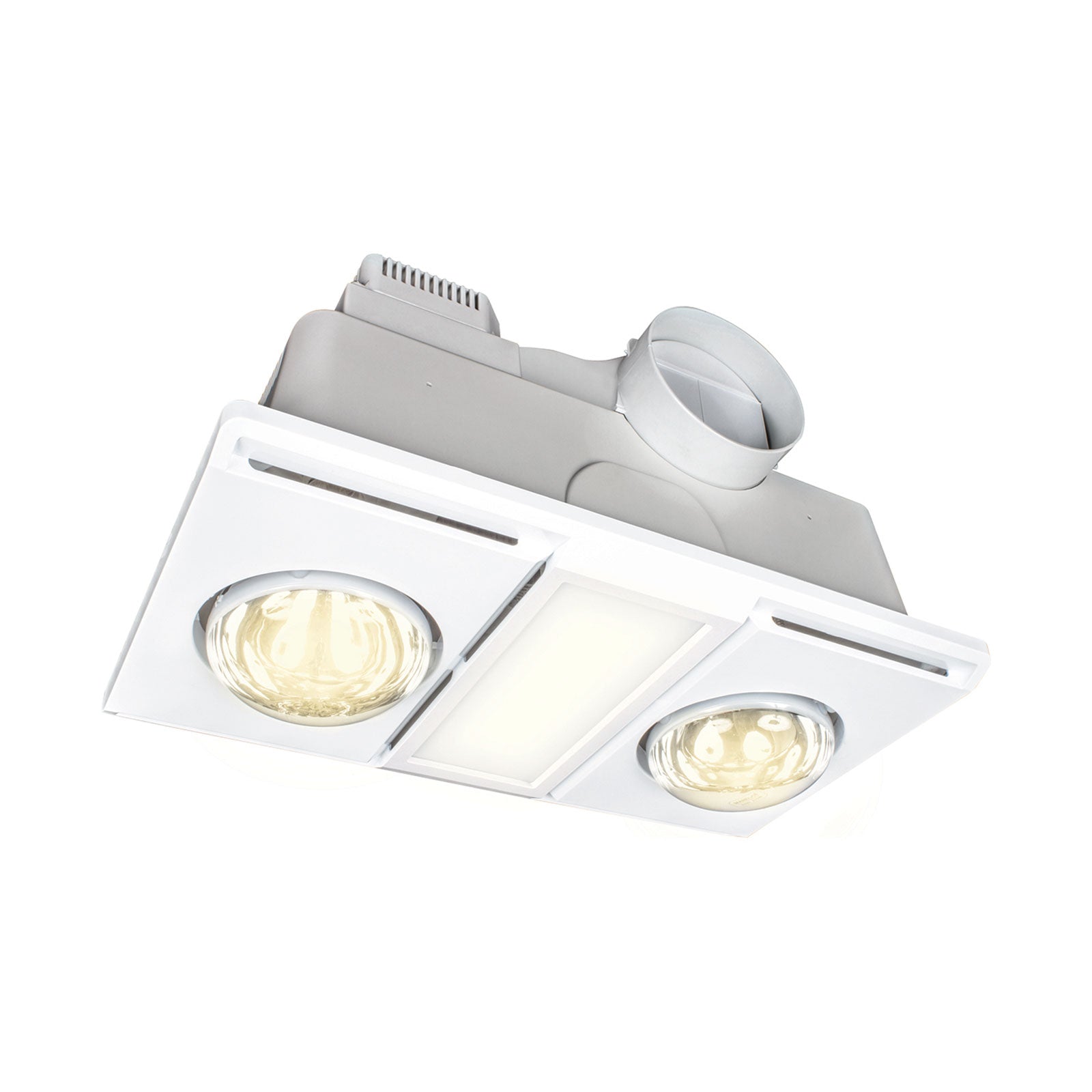

The Supernova-II is a 3-in-1 light, exhaust fan, heater which features an ultra-bright 900 lumen colour temperature adjustable LED centre light, a high velocity exhaust fan and 2 instant heat lamps. Its high extraction rate provides optimal ventilation and easily removes moisture and steam.
- High performance 2x 275W instant heat lamp to warm the body
- Powerful 40W ball bearing motor.
- Fan extracts up to 500m³/hr to easily remove moisture and stream
- 12W LED light with 900 lumen maxium output.
- Easilly change colour temperature (CCT) from warm white
3000K, natural daylight 5000K.
- 150mm side duct outlet with draft stopper
- Low profile fascia design
- This unit is fitted with a thermostat switch that will automatically
turn on the fan if the internal temperature exceeds 90°C.
- Includes 3 gang wall switch, 1.5m aluminium duct and exterior vent.
Additional information:
Operating Voltage: 240V / 50Hz
Class: Class I (1)
Total Wattage: 602W
Motor Wattage: 40W
Motor Type: Longlife ball bearing
Air Extraction: up to 500m3/hr (139l/sec)
Heat Wattage: 2x 275W
Heat Type: Instant heat globes
Light Wattage: 12W max
Light Lumens: 900lm max
Colour Temperature: 3000K or 5000K
Cutout: 430x 250mm
Outlet Diameter: suits ø150mm ducting
Ingress protection: IPX2
Control: 3-Gang wall switch
Thermal Safety Switch: Auto cut-off / Fan on (90°C)
Minimum installation clearance between unit and roof: 150mm
Includes Accessories: 3-Gang wall control, 1.5m flexible alumninium ducting, 2 x duct clamps and exterior grille
Warranty 3 year replacement
Installation:
Must be installed by a licensed electrician
