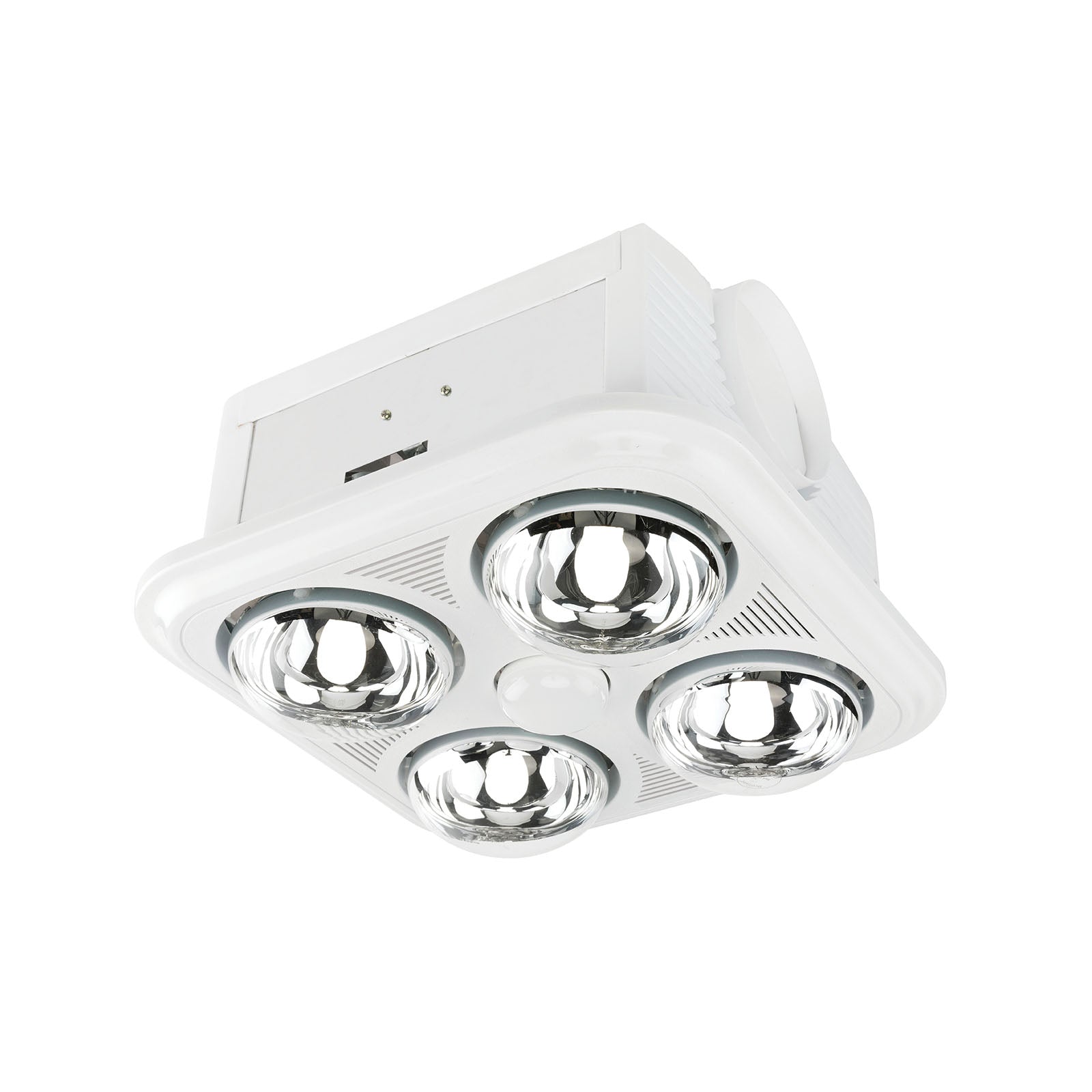

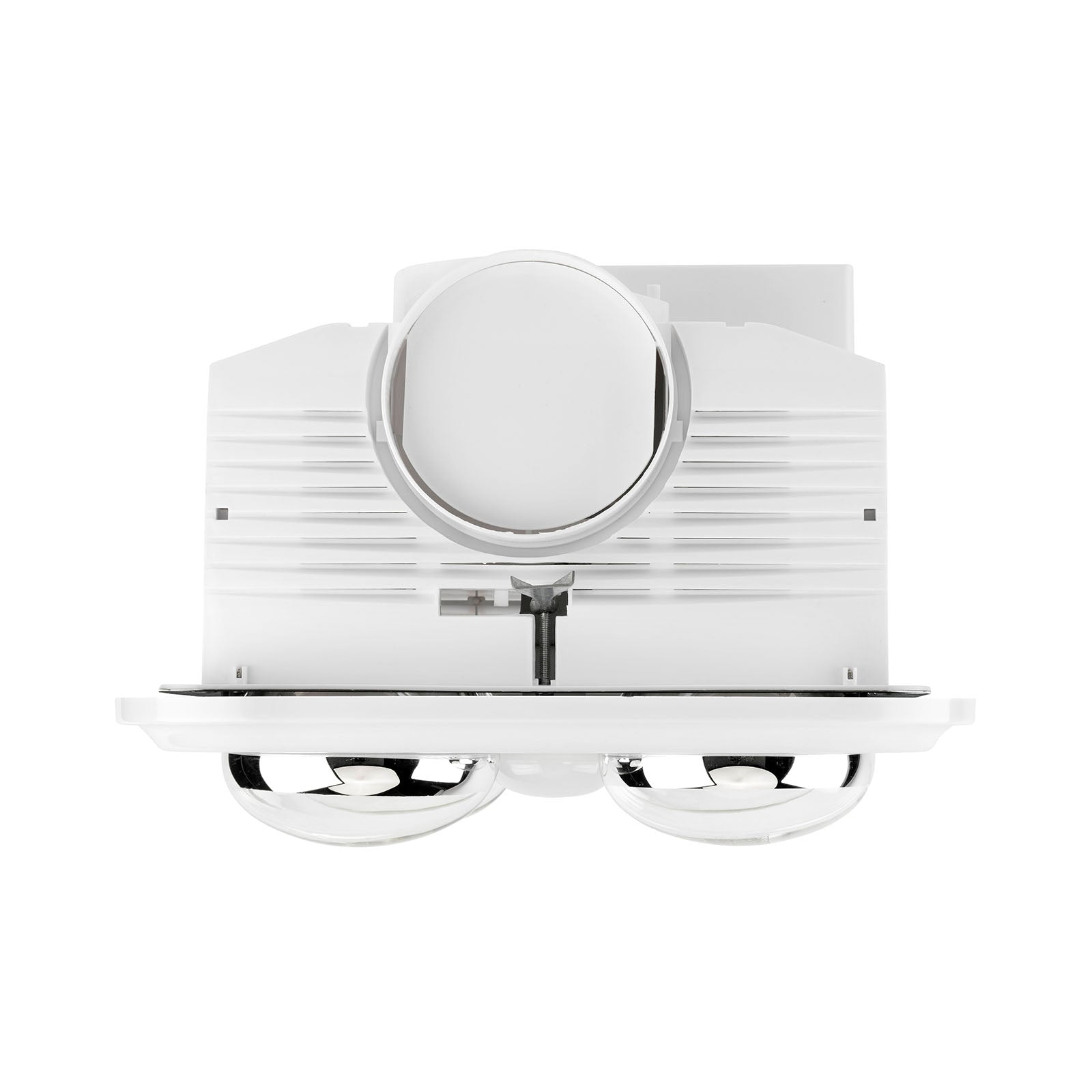

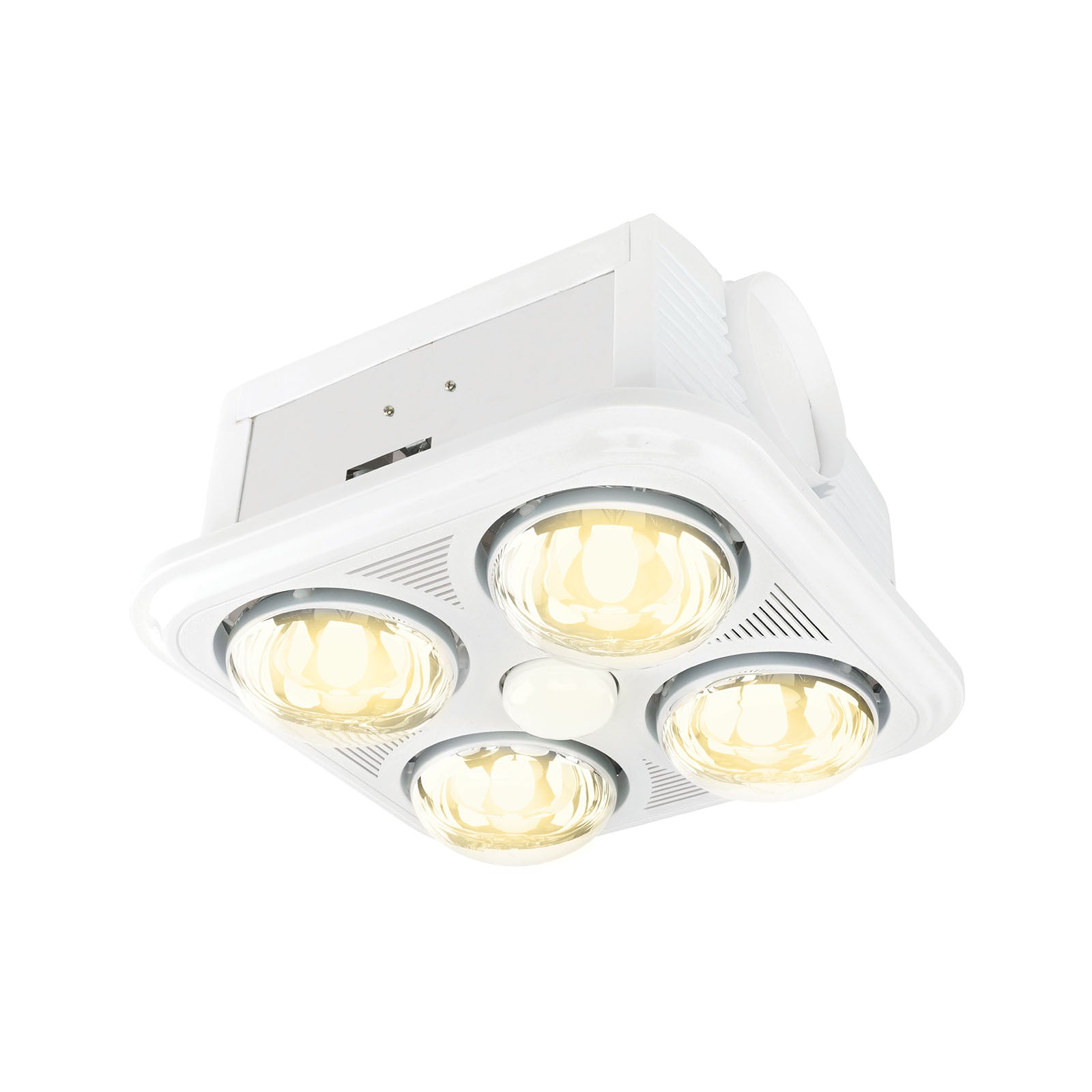

modern light, heater, and exhaust fan also have a bright, cool white LED centre light, and a powerful durable motor that easily
ventilates and removes steam.
- High-performance 4x 275W instant heat lamps to warm the body.
- Powerful 70W ball bearing motor.
- Fan extracts up to 330m³/hr to easily remove moisture and stream
- 9W 860lumen cool white energy saver R63 LED reflector globe
- 125mm side duct outlet with draft stopper
- Low profile fascia design
- This unit is fitted with a thermostat switch that will automatically
turn on the fan if the internal temperature exceeds 80°C.
- Includes 4 gang wall switch, 1.5m aluminium duct and exterior vent.
Additional information:
Operating Voltage: 240V / 50Hz
Class: Class I (1)
Total Wattage: 1179W
Motor Wattage: 70W
Motor Type: Longlife ball bearing
Air Extraction: up to 330m3/hr (92l/sec)
Heat Wattage: 4x 275W
Heat Type: Instant heat globes
Light Wattage: 9W max
Light Lumens: 860lm max
Colour Temperature: 4200K
Cutout: 310x 300mm
Outlet Diameter: suits ø125mm ducting
Ingress protection: IPX2
Control: 4-Gang wall switch
Thermal Safety Switch: Auto cut-off / Fan on (80°C)
Minimum installation clearance between unit and roof: 100mm
Includes Accessories: 4-Gang wall control, 1.5m flexible alumninium ducting, 2 x duct clamps and exterior grille
Warranty 3 year replacement
Installation:
Must be installed by a licensed electrician
